Measuring irradiance data in the field reduces the uncertainty of the energy production assessment and results in a measurable return on investment during project financing. In eight years of serving the solar development community, GroundWork® Renewables observational MET program combines high quality equipment and its rigorous data quality program, GroundWatch® to achieve a field uncertainty as close to the instrument uncertainty as possible.

Observational MET program

Timing and siting

Solar developers typically deploy MET equipment when the project AC capacity is 10MW or higher and land acquisition is complete. Ground campaigns are run for a minimum of 1 year. Collaboration with developers and landowners to properly site the MET station is key. Many factors are considered to ensure data quality, allow access for proper maintenance and maintain security of the station. The MET station should be mobile, fenced, and log data for transmission back to servers.

High quality equipment

Irradiance is king

PV developers require global horizontal irradiance (GHI) data to characterize solar resource and model energy production. GHI is the total solar radiation incident upon a surface when mounted horizontal to the earth. Groundwork measures GHI with redundant secondary-standard pyranometers, either the Hukseflux SR20 or Kipp & Zonen CMP11. These instruments provide a best case measurement uncertainty of 2%. With redundant measurements and reliable maintenance, GroundWork strives to achieve a field uncertainty as close to the instrument uncertainty as possible.

Diffuse horizontal irradiance (DHI) data further aids energy modelers in determining the energy available at the plane of the array. This is particularly useful for single-axis tracking arrays. DHI is all the available light that has been scattered by the atmosphere. For DHI, GroundWork deploys either the Irradiance RSR2, DeltaT SPN1 or EKO SunTracker with a shaded secondary-standard pyranometer along with a pyrheliometer measuring DNI. The selection of DHI measurement equipment is always cost versus uncertainty. The RSR2 and SPN1 instrument uncertainty is around 5-15%, while the tracked solution provides a best case GHI, DHI and DNI measurement uncertainty of 1.5%.

Ancillary MET measurements

MET systems should measure relative humidity, temperature, wind speed, wind direction, barometric pressure and precipitation. MET data is often required by the utility contracted to purchase power. It is used in the power modeling process and to inform array design.

Soiling measurement

It is cost effective to measure site-specific soiling trends in conjunction with the MET campaign. We utilize the same data logging and data transmission infrastructure but also leverage the same maintenance technician. GroundWork deploys two, small solar panels. One is left soiled while the other is cleaned weekly. This resulting data can inform the soiling rate assumption when modeling energy output.


Onsite maintenance

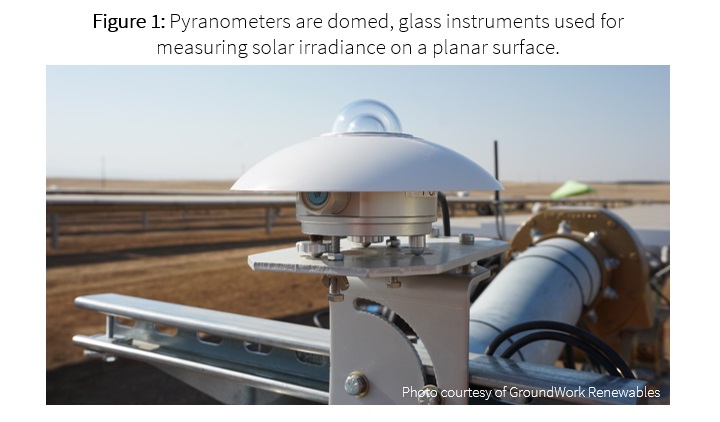

Pyranometers are domed, glass instruments and can get fouled, resulting in lower irradiance readings and increased uncertainty. Technicians visit weekly to clean & level the irradiance sensors, inspect the ancillary MET sensors and verify the security of the equipment. The resulting metadata accompanies the dataset through the financing process to affirm the field uncertainty.


Data quality assurance

With a dataset that is so valuable, it is paramount to ensure its safe transmission, storage and analysis. Our data-quality algorithms and visual analysis alert our team and flag data that looks suspect. We quickly recognize, diagnose and rectify any anomalies in the data to minimize ‘holes’ in the dataset. We can then deploy our maintenance technicians to check on the equipment and return it to good working order.

Ensuring certainty – A good investment

A quality ground data measurement campaign can be performed for a nominal cost relative to the total CapEx (capital expenditure) of a utility-scale solar project. The results can reduce the uncertainty of the energy production assessment resulting in lower financing costs and more accurate production estimates. At GroundWork, we are passionate about our small part to help fuel the solar industry’s growth and will continue to evolve our offerings to meet the industry’s needs.
